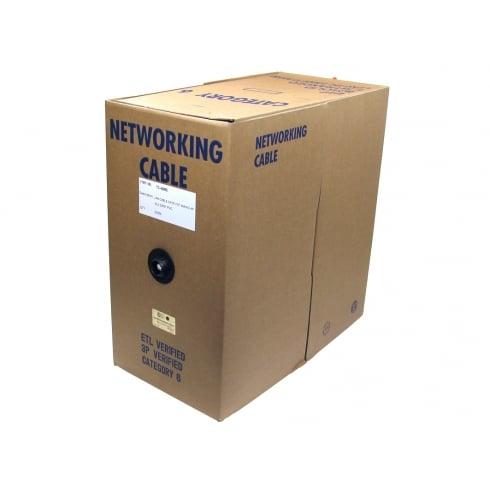

Product: Black CAT6-305 Duct Grade Cable

Application & Industry Standards:

• Telephony Voice Wiring, 10 Base-T, 100 Base-T4
• UL Subject 444, EIA/TIA568, ISO/IEC 11801, TIA/EIA-568-B.2
• Complies with IEC61156-5, IEC60332-1, EN50288, and EN50173-1 standards

Construction:

• Conductor: 4x2x0.57mm Solid Bare Copper
• Insulation: 1.02mm HDPE
• Jacket: 6.4mm PE
• Insulation Colors: Blue, White/Blue, Orange, White/Orange, Green, White/Green, Brown, White/Brown
• CPR Rating: Eca

Electrical Characteristics (at 20°C):

• Impedance: 100 ± 15 ohms
• DC Resistance (max): 8.9 ohms/100m @ 20°C
• Mutual Capacitance (max): 5.2 pF/100m @ 1kHz
• Delay Skew: 45ns
• Voltage Rating: 300 Volts AC or DC

Mechanical Characteristics:

• Min. Bending Radius: 4 × the outside diameter of the jacket
• Operating Temperature: -20°C to 60°C
• Propagation Delay (max): 540 ns @ 10MHz

Performance Characteristics:

• Frequency Range: 1MHz to 250MHz
• Attenuation and NEXT values across various frequencies, providing reliable data transmission.
